Productive machine learning in Python with Palladium and scikit-learn

class: center, middle

# Productive machine learning in Python

Daniel Nouri, Natural Vision UG, datascienceresearch.com 2018

---

# Agenda

We'll focus on two things:

- Development cycle and putting models into production scalably
- Common tasks in Machine Learning projects

1. Who am I?
2. Palladium: Overview
3. Palladium: Development cycle
4. Hyperparameter search: Grid Search
5. Palladium: Webservice
6. scikit-learn: Pipelines
7. Skorch: Neural networks
8. Dask: Parallelisation
9. Palladium: Datasets, OpenML
10. Regression and classification
11. Skorch: Sentiment analysis with RNNs

---

# Download slides and code

Download this repository to be able to run code examples:

```bash
$ git clone https://github.com/dnouri/dsr-2018.git
```

Slides are online at:

https://dnouri.github.io/dsr-2018/

---

# whoami

- Machine Learning Consultant ([Natural Vision](http://naturalvision.de))
  * Development and training (Python and Machine Learning)
- Clients: Otto Group, IKEA, Luxottica
- Strengths:
  * Python (since 2000)
  * Open Source (since 2003)
  * Deep Learning (since 2014)
  * Software development best practices (testing, pairing, tutorials)

---

# Palladium: Overview

Palladium emerged from a Otto Group BI project to predict parcel
delivery times.

These are the requirements that Palladium fulfills for the *Otto Group
BI*:

- Smooth transition from prototypes to machine learning models in
  production
- Avoid boilerplate in ML projects
- High scalability
- Avoid license costs

A presentation of Palladium from PyData 2016 is found [here
(PDF)](./resources/palladium-pydata-lattner.pdf).

We will start by implementing a classifier with Palladium

---

# Iris dataset

In our first example in `step1`, we will make use of the classic
"Iris" machine learning dataset from 1936.

`step1/iris.data` contains the data in CSV format.  Note that the
first line for column names is missing:

```csv
5.2,3.5,1.5,0.2,Iris-setosa
4.3,3.0,1.1,0.1,Iris-setosa
5.6,3.0,4.5,1.5,Iris-versicolor
6.3,3.3,6.0,2.5,Iris-virginica
...
```

The columns are:

- `sepal length`
- `sepal width`
- `petal length`
- `petal width`
- `species`

---

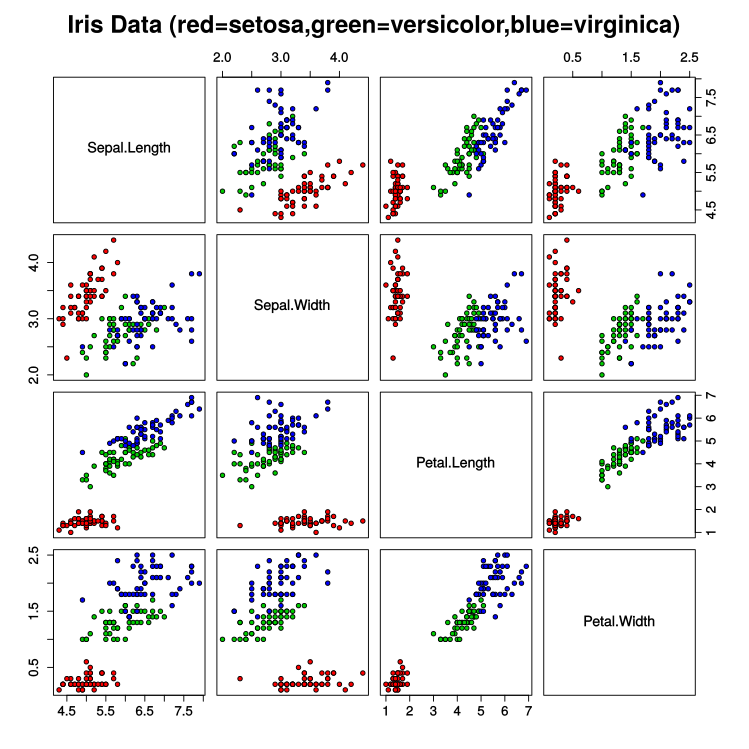

# Iris as a classification problem

We want to implement a classifier that predicts the species based on
the four attributes.

![:scale 50%](./resources/iris-scatter.png)

---

# Palladium: Reading the dataset

You'll find a configuration file in `step1/config.py`.  Therein,
you'll find the definition of two `dataset_loader`s, which are
responsible for reading the dataset:

```python
{
    'dataset_loader_train': {
        '__factory__': 'palladium.dataset.Table',
        'path': 'iris.data',
        'names': [
            'sepal length',
            'sepal width',
            'petal length',
            'petal width',
            'species',
        ],
        'target_column': 'species',
        'sep': ',',
        'nrows': 100,
    },

'dataset_loader_test': {
        '__copy__': 'dataset_loader_train',
        'nrows': None,
        'skiprows': 100,
    },
}
```

---

# Palladium: Configuration and code separated

Palladium encourages the separation of configuration and code.
Machine Learning projects typically have a lot of constants and
configuration.  Here are some examples:

- Path to the dataset

```python
        'path': 'iris.data',
```

- Database configuration

```python
        'url': 'sqlite:///iris-model.db',
```

- Hyperparameters of our models

```python
        'C': 0.1,
```

- Differing configuration for production and development environments

---

# Palladium: Model definition

```python
    'model': {
        '__factory__': 'sklearn.linear_model.LogisticRegression',
        'C': 0.1,
    },

'model_persister': {
        '__factory__': 'palladium.persistence.Database',
        'url': 'sqlite:///iris-model.db',
    },
```

The model definition uses the configuration key `model`.  As our
classifier, we'll make use of the implementation of [Logistic
Regression](http://scikit-learn.org/stable/modules/generated/sklearn.linear_model.LogisticRegression.html)
out of scikit-learn.

The `model_persister` entry defines where we'll save the trained model
and where to read it back from.  The configuration above configures a
SQLite database to act as the model storage.

---

# Palladium: Installation

Let's install Palladium.  We'll first create a
[virtualenv](https://virtualenv.pypa.io), and install dependencies
therein:

```bash
$ python3 -m venv .
$ source bin/activate  # or: `scripts/activate.bat` on Windows
$ pip install -U pip
$ pip install -r step1/requirements.txt
Collecting palladium (from -r step1/requirements.txt (line 1))...
...
Successfully installed ...
```

If you want to use [Conda](https://conda.io) instead because maybe
you're on Windows and don't have Visual Code installed:

```bash
$ conda install ujson
$ pip install -r step1/requirements.txt
```

---

# Palladium: Training a model

We already have all pieces in place to fit our first model.  To fit,
we'll use Palladium's `pld-fit` command along with the `--evaluate`
option.  On Linux:

```bash
$ cd step1
$ export PALLADIUM_CONFIG=config.py
$ pld-fit --evaluate
INFO:palladium:Loading data...
...
INFO:palladium:Train score: 0.9
...
INFO:palladium:Test score:  0.82
...
INFO:palladium:Wrote model with version 1.
```

On Windows:

```shell
$ cd step1
$ set PALLADIUM_CONFIG=config.py
$ pld-fit --evaluate
```

Our classifier reaches an accuracy of 90% on the training set and 82%
on the test set.

---

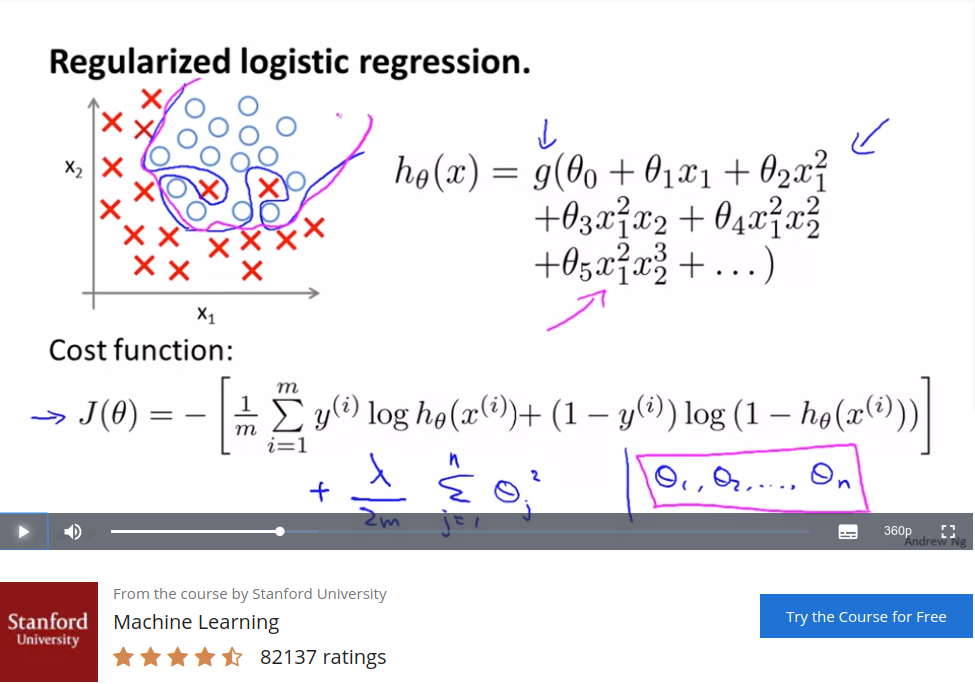

# Regularization

So what is this `C` parameter of our model about?

![:scale 80%](./resources/ng-regularized-lr.png)

---

# Regularization (2)

From the [scikit-learn
docs](http://scikit-learn.org/stable/modules/generated/sklearn.linear_model.LogisticRegression.html):

> `C`: Inverse of regularization strength; must be a positive
float. Like in support vector machines, smaller values specify
stronger regularization.

## Exercise 1:

Can we find a better C parameter such that our score on the test set
improves?

---

# Grid Search

The search for optimal hyperparameters is a very common task in
machine learning.  In our example, doing the search by hand was still
easy, but more complex models and pipelines often have a big number of
these parameters.

There's different options to perform the search, scikit-learn itself
implements a [number of these
algorithms](http://scikit-learn.org/stable/modules/grid_search.html).
One of these algorithms is called *Grid Search*.

---

# Grid Search: Application

`step2/config.py` contains the parametrization of our Grid Search:

```python
    'grid_search': {
        'param_grid': {
            'C': [0.1, 1, 10, 100, 1000],
         },
        'cv': 8,
        'verbose': 4,
        'n_jobs': -1,
    },
```

We use Palladium's `pld-grid-search` command to execute the search:

```bash
$ cd ../step2
$ pld-grid-search
```

---

# Grid Search: Interpreting the output

```
   mean_fit_time  mean_score_time  mean_test_score  mean_train_score param_C
3       0.000778         0.000188             0.98          0.989990     100
4       0.000860         0.000221             0.98          1.000000    1000
2       0.000691         0.000198             0.96          0.972828      10
1       0.000675         0.000199             0.95          0.955667       1
0       0.001668         0.000427             0.87          0.872882     0.1
```

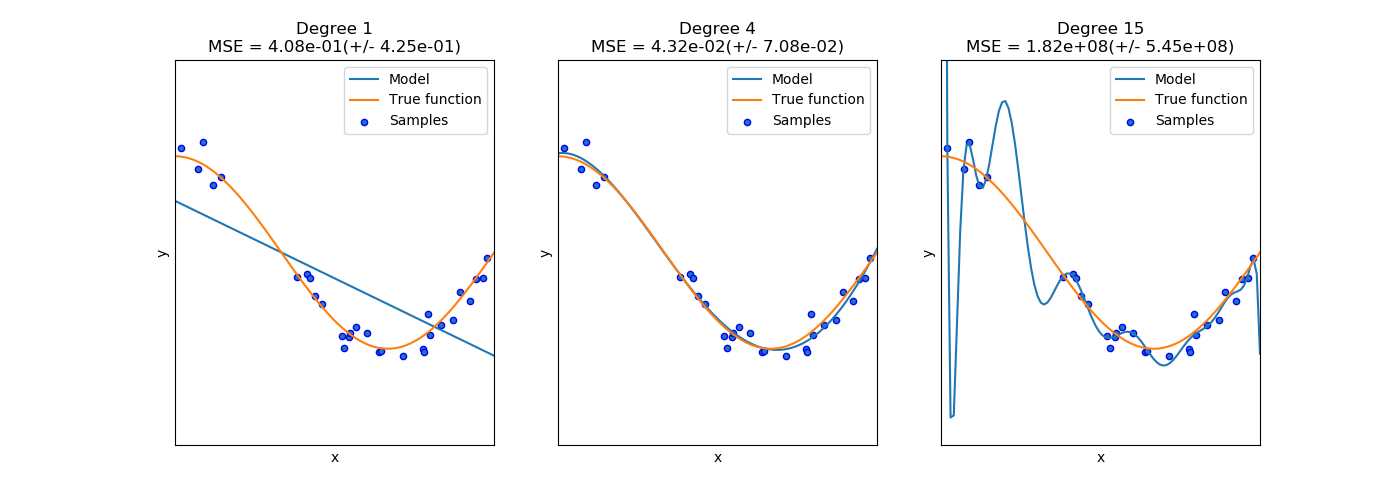

A low value for C means stronger regularization.  The effect here is
"underfitting", which is characterized by a low train and low test
score.

![:scale 100%](./resources/sklearn-overfitting-underfitting.png)

---

# Palladium: Webservice

Palladium implements a simple webservice, with which we can address
our trained model via HTTP and make predictions.

First we need to configure the webservice.  In our Iris example, this
is what we need:

```python
    'predict_service': {
        '__factory__': 'palladium.server.PredictService',
        'mapping': [
            ('sepal length', 'float'),
            ('sepal width', 'float'),
            ('petal length', 'float'),
            ('petal width', 'float'),
        ],
    },
```

You can find this configuration in `step3/config.py`.

---

# Palladium: Running the webservice

```bash
$ cd ../step3
$ pld-fit --evaluate
$ pld-devserver
```

We can now call the service via HTTP GET.  Follow this link:

http://localhost:5000/predict?sepal%20length=6.3&sepal%20width=2.5&petal%20length=4.9&petal%20width=1.5

This is the result:

```json
{
    "metadata": {"error_code":0,"status":"OK"},
    "result":   "Iris-virginica"
}
```

---

# Palladium: Python API

We want to write a script to produce the following output:

```bash
$ python predict.py 6.3 2.5 4.9 1.5
Iris-setosa: 0.0%
Iris-versicolor: 44.9%
Iris-virginica: 55.1%
```

Here's the implementation in `step3/predict.py`:

```python
import sys

from palladium.config import get_config

def predict(features):
    model = get_config()['model_persister'].read()
    result = model.predict_proba([features])[0]
    for class_, proba in zip(model.classes_, result):
        print("{}: {:.1f}%".format(class_, proba*100))

if __name__ == '__main__':
    predict([float(v) for v in sys.argv[1:]])
```

---

# Skorch

[Skorch](https://skorch.readthedocs.io/) is a scikit-learn compatible
library for neural networks.  It's based on [PyTorch](https://pytorch.org).

## Installation

```bash
$ pip install -r step4/requirements-base.txt
```

Look for the way to install PyTorch on your system on
http://pytorch.org

If you are running Linux and you don't have CUDA, try this:

```bash
$ pip install -r step4/requirements-cpu.txt
```

If you're running Linux and you have CUDA installed, then this should
work:

```bash
$ pip install -r step4/requirements-gpu.txt
```

---

# Skorch: Iris

We'll continue working with the Iris dataset.  Instead of a logistic
regression, we'll use a neural network to do the classification.

You'll find the implementation of the neural network and supporting
code in `step4/model.py`.  The configuration is in `step4/config.py`.
Let's take a look at the most important parts.

A large part of our configuration looks exactly the same as in the
last step, namely `dataset_loader_train`, `dataset_loader_test` and
`model_persister`.

The `model` entry is where things get more interesting:

```python
    'model': {
        '__factory__': 'model.create_pipeline',
    },
```

Our model is produced by a custom function called `create_pipeline`.

---

# scikit-learn: Pipelines

A `sklearn.pipeline.Pipeline` is a pipeline of transforms with a final
estimator (classifier or regressor).  Here's the implementation of
`model.create_pipeline`:

```python
def create_pipeline(
    device='cpu',  # or 'cuda'
    max_epochs=50,
    lr=0.1,
    **kwargs
):
    return PipelineY([
        ('cast', Cast(np.float32)),
        ('scale', StandardScaler()),
        ('net', NeuralNetClassifier(
            MyModule,
            device=device,
            max_epochs=max_epochs,
            lr=lr,
            train_split=None,
            **kwargs,
        ))],
        y_transformer=LabelEncoder(),
        predict_use_inverse=True,
        )
```

---

# scikit-learn: StandardScaler

`StandardScaler` is one of the transforms that scikit-learn itself
implements.  This transform standardizes features by removing the mean
and scaling features to unit variance.

From the [scikit-learn
docs](http://scikit-learn.org/stable/modules/generated/sklearn.preprocessing.StandardScaler.html):

> Standardization of a dataset is a common requirement for many
machine learning estimators: they might behave badly if the individual
features do not more or less look like standard normally distributed
data (e.g. Gaussian with 0 mean and unit variance).

> For instance many elements used in the objective function of a
learning algorithm (such as the RBF kernel of Support Vector Machines
or the L1 and L2 regularizers of linear models) assume that all
features are centered around 0 and have variance in the same
order. **If a feature has a variance that is orders of magnitude
larger than others, it might dominate the objective function and make
the estimator unable to learn from other features correctly as
expected.**

---

# Skorch: NeuralNetClassifier

```python
from skorch import NeuralNetClassifier

NeuralNetClassifier(
    MyModule,
    device='cpu',
    max_epochs=50,
    lr=0.1,
    train_split=None,
    **kwargs,
)
```

Class `NeuralNetClassifier` contains the training logic, as well as
methods such as `fit` and `predict`, for compatibility with
scikit-learn.

---

# PyTorch: nn.Module

Our PyTorch `Module` contains the definition of our neural network.
We instantiate the layers of our network in `__init__`.  In method
`forward` we accept the data (`X`) and run the data through our
layers:

```python
class MyModule(nn.Module):
    def __init__(self, num_inputs=4, num_units=10, num_outputs=3):
        super(MyModule, self).__init__()

self.dense0 = nn.Linear(num_inputs, num_units)
        self.nonlin = F.relu
        self.dropout = nn.Dropout(0.5)
        self.dense1 = nn.Linear(num_units, 10)
        self.output = nn.Linear(10, num_outputs)

def forward(self, X, **kwargs):
        X = self.nonlin(self.dense0(X))
        X = self.dropout(X)
        X = F.relu(self.dense1(X))
        X = F.softmax(self.output(X), dim=-1)
        return X
```

---

# Learning rate

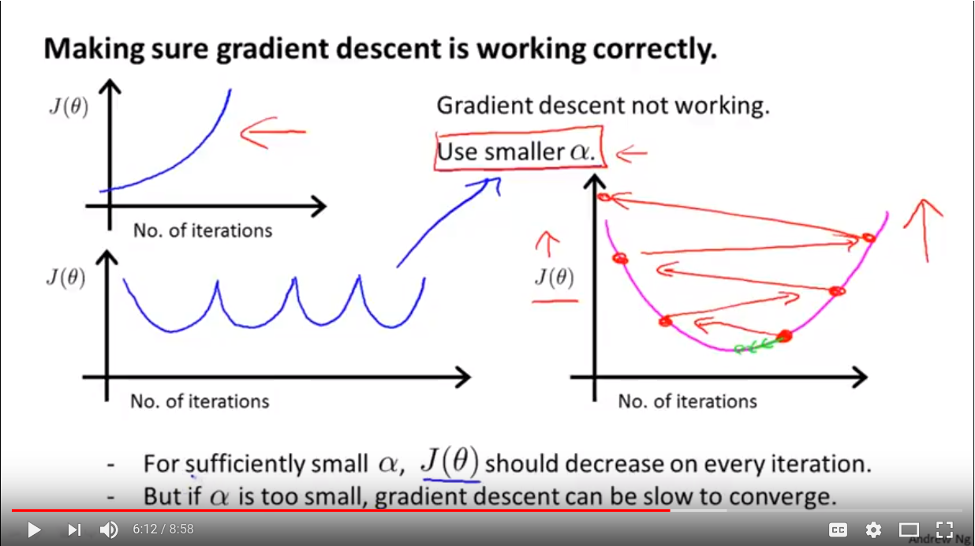

One of the most important hyperparameters of neural networks is the
*learning rate*.  It defines, how large our iterative steps are during
gradient descent.  Gradient descent is the optimization algorithm
that's used in neural networks and many other machine learning
algorithms.

![:scale 80%](./resources/ng-learning-rate.png)

---

# Grid Search: Network hyperparameters

In `step4/config.py`:

```python
    'grid_search': {
        'param_grid': {
            'net__lr': [0.03, 0.1, 0.3],
        },
        'cv': 5,
        'verbose': 4,
        'n_jobs': 1,
    },
```

```bash
$ pld-grid-search
```

## Exercise 2:

Which learning rate is the best?

---

# Grid Search: Network hyperparameters (2)

## Exercise 3:

In `step4/config.py`, look for the comment *YOUR CODE HERE*.  Try to
find a good combination of learning epochs (`net__max_epochs`) and
learning rate (`net__lr`).  Can you find a combination that gets a
`mean_test_score` of 96% or better?

---

# Skorch: LRScheduler and EarlyStopping

- The
  [skorch.callbacks.LRScheduler](https://skorch.readthedocs.io/en/latest/callbacks.html#skorch.callbacks.LRScheduler)
  allows us to adapt the learning rate during training, based on
  arbitrary conditions.

- The
  [skorch.callbacks.EarlyStopping](https://skorch.readthedocs.io/en/latest/callbacks.html#skorch.callbacks.EarlyStopping)
  callback allows the stopping of training if further training leads
  to no more improvements.

---

# Grid Search: Parallelization with Dask

If we now consider adding more hyperparameters to the search, such as
the number of neurons in our network's *hidden layer*, we'll
understand that the search can quickly take a long time.

```python
    'grid_search': {
        'param_grid': {  # 3 * 4 * 4 * 5 = 240 fits!
            'net__lr': [0.03, 0.1, 0.3],
            'net__max_epochs': [50, 100, 200, 400],
            'net__num_units': [5, 10, 20, 40],
        },
```

The search for the best hyperparameters is often the most
computationally intense part of machine learning projects.  For this
reason, scikit-learn supports the parallelization of Grid Search onto
clusters via [Dask](http://dask.pydata.org):

> Dask is a flexible library for parallel computing in Python.

---

# Dask: Application

```bash
$ pip install dask distributed
```

We start a scheduler inside a new terminal windows:

```bash
$ source bin/activate
$ dask-scheduler
```

And a worker in another terminal window.  You may add an arbitrary
number of these:

```bash
$ source bin/activate  # on Windows: scripts/activate.bat
$ cd step4
$ export PYTHONPATH=.  # on Windows: set PYTHONPATH=.
$ dask-worker 127.0.0.1:8786
```

Finally, we start our Grid Search like this (from inside the environment!):

```bash
$ cd step4
$ export PALLADIUM_CONFIG=config.py,dask-config.py
$ # or on Windows: set PALLADIUM_CONFIG=config.py,dask-config.py
$ pld-grid-search
```

---

# Determine wine quality with Skorch

Let's try the same neural net on a different dataset.  We'll use the
[Wine Quality Data Set](https://www.openml.org/d/40691) to learn a
model to predict the quality of wine based on a score between 0
(awful) and 10 (fantastic).

`step5` contains a copy of `step4`. First, we will have to implement a
Palladium `DatasetLoader` to read the dataset.  We will then try to
use the network from our last example to do the classification.

Note that when you are finished implementing the DatasetLoader, you'll
see an error trying to fit the neural network.

```bash
$ pip install -U scikit-learn
```

---

# Ein DatasetLoader fuer OpenML

The configuration in `step5/config.py` was updated to refer to our new
class `OpenML`, which reads our dataset from
[OpenML.org](https://www.openml.org):

```python
    'dataset_loader_train': {
        '__factory__': 'dataset.OpenML',
        'name': 'wine-quality-red',
    },
```

## Exercise 4

Complete the implementation of the `OpenML` class in
`step5/dataset.py`:

```python
from sklearn.datasets import fetch_openml

class OpenML:
    def __init__(self, name):
        self.name = name

def __call__(self):
        # YOUR CODE HERE:
```

---

# MyModule: Input and output parameters

## Exercise 4 (continued)

The feature matrix of our new dataset has a shape (dimensionality)
that is different to the shape of our Iris feature matrix.  Also, the
number of classes is different.

Determine the shape of the new feature matrix by adding print
statements into your `OpenML` implementation.

Try to find out which parameters to set in `step5/confg.py` so that
the network can be trained:

```python
    'model': {
        '__factory__': 'model.create_pipeline',
        # YOUR CODE HERE:
    },
```

As soon as you are able to train the network (use `pld-fit`), take a
look at the Grid Search parameters inside the configuration file.  Can
you find a configuration of hyperparameters with which you can reach
an accuracy of 55% or more on the `mean_test_score`?

---

# Regression instead of classification

We can pose the prediction of the wine quality score as a regression
problem.  That is, instead of predicting probabilities for the 10 or
so classes, we will try to predict a single number: the actual score
as a continuous value between 0 and 10.

## Exercise 5

- We make a copy of `step5` and call the new directory `step6`
- Our network needs to have one output instead of ten
- The `softmax` function is not used in regression: remove it
- We use the `neg_mean_absolute_error` instead of `accuracy` in `config.py`
- We make use of `NeuralNetRegressor` instead of `NeuralNetClassifier`
- We'll replace our `PipelineY` with `sklearn.pipeline.Pipeline`.  The
  `LabelEncoder` is no longer useful.  (tricky!)
- Let's hack our `DatasetLoader` to return the target (or `y`) vector
  as `float32`: `target = dataset.target.astype('float32')`.
- For regression problems, Skorch expects a target of shape NxM, where
  each sample can have multiple regression targets: `target =
  target.reshape(-1, 1)`.

---

# Random Forest instead of neural network

## Exercise 6

- Rewrite the `model` entry in `step6/config.py` to use
  `sklearn.ensemble.RandomForestRegressor` instead of our
  `create_pipeline` function.

*Hint:* You'll need the following lines in your configuration:

```python
      'model': {
          '__factory__': 'sklearn.ensemble.RandomForestRegressor',
          # ...
      },
  ```

- Read through the most important parameters of class
  [`RandomForestregressor` in the scikit-learn
  documentation](http://scikit-learn.org/stable/modules/generated/sklearn.ensemble.RandomForestRegressor.html).
  Use a few parameters to run a Grid Search.  What's the best
  `mean_test_score` can you can get?

---

# Skorch: Sentiment analysis with RNNs

Our last example demonstrates the use of RNNs to do sentiment analysis
on text.  We use the [Large Movie Review
Dataset](http://ai.stanford.edu/~amaas/data/sentiment/) to train our
network.

The implementation follows the `rnn_classifier` example within the
Skorch source tree.  The implementation is already provided for you in
`step7/config.py` and `step7/model.py`.  Before we dive into how the
model works, let's train it:

```bash
$ cd ../step7
$ pld-fit --evaluate
```

This may take a while if you're doing this on CPU.

---

# Sentiment analysis as a service

After the training finished, we can fire up our webservice again:

```bash
$ pld-devserver
```

And then call it like so:

http://localhost:5000/predict?text=A+fantastic+movie+despite+its+flaws

The response should look similar to this:

```json
{"result":[0.348106294870377,0.651893734931946],
 "metadata":{"status":"OK","error_code":0}}
```

---

# Skorch: Sentiment analysis with RNNs (2)

Let's take a look at the ["Predict sentiment on the IMDB Dataset"
notebook](https://github.com/dnouri/skorch/blob/master/examples/rnn_classifer/RNN_sentiment_classification.ipynb)
to understand how the model works.

```bash
$ pip install jupyter
$ jupyter notebook
```

Look for `RNN_sentiment_classification.ipynb`.

---

# End

- https://github.com/ottogroup/palladium
- https://github.com/scikit-learn/scikit-learn
- https://github.com/dnouri/skorch

- daniel@naturalvision.de
- [twitter.com/dnouri](https://twitter.com/dnouri)
- [danielnouri.org](http://danielnouri.org)
- [naturalvision.de](http://naturalvision.de)
- [linkedin.com/in/nouri](https://www.linkedin.com/in/nouri)

## Images

- [scikit-learn](http://scikit-learn.org)
- [Machine Learning
  course](https://www.coursera.org/learn/machine-learning) on Coursera
